CGI Studio 3.14

Welcome to CGI Studio 3.14, Candera's software development platform for hybrid 2D and 3D graphical interfaces for embedded systems.

This page provides information regarding the most recently added features and updates since our last release.

3D Feature Enhancements
- Import 3D models with skinning
- Support for custom OpenGL shaders in 2D scenes
Implementation of "Fit to Screen" (2D scene)
Courier Editor Feature Improvements
- Easier access from Scene Composer
- Improved usability when configuring your data-binding source files (See here for examples of use)
Updated Sample Solutions (3DEffect, 2DEffect, OpenGL 2D Effects)

High Resolution Support
- Scene Composer and Control Center user interface now supports high resolution settings on Windows
- Newer and sharper icons are available, independent of your Windows DPI settings
New Patch Application Process
- an easier and safer way to update your CGI Studio
Easier handling with Scene Composer's Text Style Editor
- Setting Ascender and Descender properties for fonts now possible
Extended drag & drop functionality incl. duplication of objects in Scene Tree

A new CMake system was introduced to CGI Studio. This approach has several advantages:
it is based on newer CMake versions (CMake 3.19.0 or higher is required): some newer CMake features allow for a much simpler configuration
cleaner and idiomatic overall implementation: everything is implemented in a way following guide-lines from CMake.org. This makes it also easier to use it, as there is a lot of community documentation available.
better structure and order of the configuration: with the old system it is often quite difficult to find the correct place where all necessary information is available (such as target or OS information)

See Build System Setup for more details.

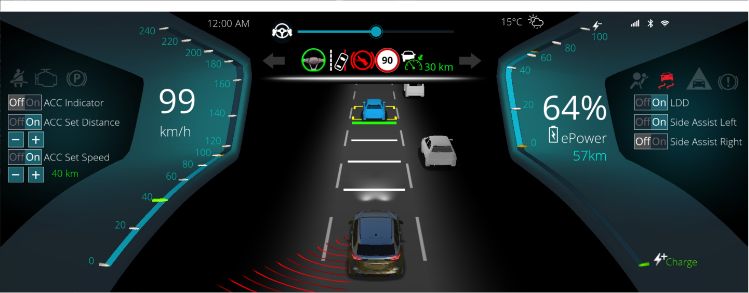

Template of an instrument cluster containing a modifiable 3D ADAS control.
