NativeViewLibrary

Requirements

This document mandates adherence to the Android Application Development Environment Setup Guide, as a prerequisite for system compliance.

The project requirements

• NativeViewLibrary Android application uses the Android Gradle Plugin version 7.2.1 and Gradle version 7.3.3.
• A custom NDK 26 is required, as described in the Android Native Development Kit (NDK) chapter.
• CMake 3.22.1 is required as described in the CMake chapter.
• Eclipse Temurin JDK 11 is required as described in Java Development Kit (JDK) chapter.
• Supported API levels: 23–28 (The application is compatible with later Android versions up to API 36 on Android 16).
• Supported ABIs: arm64-v8a, x86_64, x86
• The NativeViewLibrary Android application integrates the NativeView library, which is provided externally from ../libs/nativeview-lib and already imported into the project.

Building and Running the Android Application

To build and run the Android application, perform the following steps:

1. Substitute the CGI Studio root as described in the windows-commands/subst article.

Open a Command Prompt in the CGI Studio root directory (e.g., “...\cgistudio”) and type:

subst x: .

Press enter. The CGI root is now available under the X: drive in Windows Explorer.

2. Configure local.properties:

• • Open local.properties.sample file from the root of the Android application.
  • Copy the content of the sample to the local.properties file in the root of the Android application.
  • Update the USERNAME in the SDK and NDK paths to match your system.
  • Configure from where the asset should load under the Asset Configuration block.
  • Set the ABI to the target CPU architecture under the Target ABI block.
  • Save local.properties and sync project with Gradle files (Ctrl+Shift+O).

Note: If the SDK or NDK paths do not exist, Android Studio may reset local.properties after syncing the project with Gradle files.

3. Open the Android Application:

Launch Android Studio and open the project located at:

X:\cgi_studio_apps\References\Android\NativeViewLibrary

4. Create an Android asset

Run the following batch file:

X:\bin\SceneComposer\SceneComposer_Android_OpenGLES30.bat

• •  Choose an asset template (e.g., “3D Basic”) and save this as Test.bin
    • If from sdcard: to the /sdcard/ directory of the target or emulator. In Android Studio, this can be done in the "Device Explorer" of the target or emulator.
    • If from APK: to the following folder:

X:\cgi_studio_apps\References\Android\NativeViewLibrary\sample\src\main\assets

5. Build variant:

• • In Android Studio, open [View | Tool Window | Build Variants].
  • In the Build Variants tool window, select debug or release under Active Build Variant.

6. Run the application:

• • Select the target device or emulator in Android Studio.
  • Click Run (the play button)

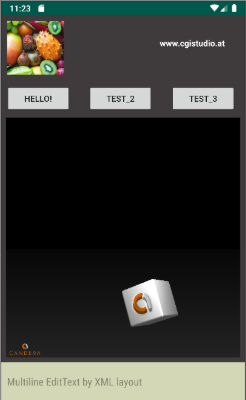

  • The first time the Application starts, it will request permissions. Accept and restart the application. The asset should now be running.

7. APK

After the application is running, the current built APK can be found in the build directory. This can located by opening [Build | Analyze APK]. The usual directory would be:

X:\cgi_studio_apps\References\Android\NativeViewLibrary\sample\build\intermediates\apk\

If the build was for release, the APK will be signed.

Troubleshooting

• If encountering any issues during the setup, refer to the official documentation for Android Studio,
  CMake, and NDK for troubleshooting steps.

Platform Tests

• Google Pixel C, ARM Cortex A57, Android 8.1.0, API 27
• Huawei MediaPad M5, ARM Cortex A73, Android 9, EMUI 9.1.0, API28
• Emulator Pixel 2, x86_64, Android 6, API 23 (Without Play/APIs)
• Emulator Medium Phone, x86_64, Android 9, API 28 (Without Play/APIs)
• Emulator Pixel 2, x86, Android 9, API 28 (Without Play/APIs)

• Emulator Google Pixel Tablet, x86_64, Android 14.0, API 34
• Emulator Google Pixel Tablet, x86_64, Android 16.0, API 36
• Emulator Google Pixel 9 Pro XL, x86_64, Android 16.0, API 36

---
