Tool bar
The toolbar is lined with icons for frequently used operations.

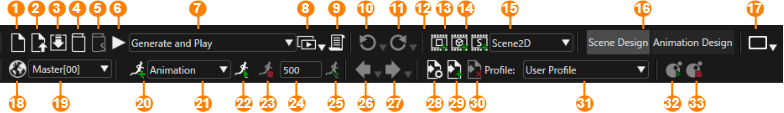

Each number in the image below corresponds to the below icon descriptions.
- Create a new solution
- Opne an existing solution
- Save solution...
- Open asset library generator dialog...
- Open safety asset library generator dialog...
- Run/Stop Player/Embedded Player, Update Embedded Player
- Select Player/Embedded Player setting
- Player/Embedded Player Selection
- Open automation scripts dialog...
- Undo
- Redo
- Add a new 2D scene
- Add a new 3D scene
- Add a new safety scene
- Select active scene
- Select perspective (Scene Design/Animation Design/User created perspective）
- Display/Hide Scene Editor
- Open Culture solution option dialog
- Select culture
- Create new animation
- Select animation
- Start animation
- Stop animation
- Animation fast forward speed
- Animation fast forward
- Go back to one previous active item
- Go forward to one previous active item
- Edit current profile
- Add a new profile
- Delete current profile
- Select profile
- Start the execution of the script system
- Stop the execution of the script system
Icons through 20 to 33 can be shown or hidden from the menu bar under [ View > Toolbars ]. (Animation: 20 to 25, Navigation: 26 and27, Editor Profiles: 28 to 31, Scripting System: 32 and 33)
By mousing the separators in the toolbar, you can customize the placement of icons on a separator-by-separator basis.
