Advanced Cluster Part 4
The• followingGet steps describe how to use the Custom_Gauge control in a scene. Speed gauge and RPM gauge are realized with the same control. Using the public properties for customization these Gauge controls appear similar yet different.
Once the advanced cluster scene is fully configured, it's time to test its functionality using the Scene Composer's Player.
Create a Cluster Scene with 2 Custom_Gauge Controls
In the Solution Explorer navigate tointo the Scene2D and
doublemake sure your scene is being updated actively
• If there is not the default group in Scene2D, then add a new group node, else click it.on
the Scene2Ddefault will be openedgroup and
visiblereset inits Sceneposition Editorby clicking at the circular arrow next to the “Position” property text
• Name the group as “Group_Content”
• Insert the “BackgroundBmp” (Solution->Resources->Bitmaps) to the group
• Place a Custom_Gauge into the group, name it as “Custom_Gauge_Speed”
• Set the position: X = 60, Y = 30
• Clone the “Custom_Gauge_Speed”, name it as “Custom_Gauge_RPM” and Sceneset Treeits panel.
X Inposition: SceneX Tree= panel965
• Select the “Custom_Gauge_Speed” and go to its properties. Set these settings:
Input Max = 240, Value = 120, Top_Text = Speed, Value_Format Text = %d, Bottom_Text = km/h
• Set the BackgroundImage to “Points_BlueBmp”
• Set the ForegroundImage to “Numbers_0-240Bmp”
• The scene is ready. Now you can see that the scene contains a camera.
In the Scene Editor's bottom toolbar make sure that "active rendering" and "widgets updating" is enabled.
In the Scene Editor's bottom toolbar "active rendering" and "widgets updating" are highlighted as seen in the image below.
From the Toolbox panel under [Nodes 2D] drag a Group node into the Scene Tree panel or the Scene Editor.
In the Scene Tree panel you can see the newly created Group node.
In the Scene Editor you can see an indicator of the Group node's current position.
Rename the Group node accordingtry to
therun table below either via the context menu "Rename" or the keyboard shortcut <F2>.
The Group node has been renamed accordingly.
Old Name
New Name
Group
Group_Content
In the Scene Tree panel select the Group node. In the Properties panel's [Transformations] section reset the Position property according to the table below.
In the Scene Editor you can see the Group node's current position.
A property can easily be reset in the Properties panel by clicking on the curled arrow icon on the property's left.
Target Item
Position
X
Y
Group_Content
0.00
0.00
From the Solution Explorer drag the image according to the table below into the Scene Tree panel directly onto the Group_Content node.
In Scene Tree panel you can see that a new RenderNode2D with a BitmapBrushBlend effect has been created inside Group_Content.
In Scene Editor you can see the rendered background image.
Path in Solution Explorer
Solution > Resources > Bitmaps
BackgroundBmp
From the Solution Explorer drag two Custom_Gauge into the Scene Tree panel directly onto the Group_Content. The path to the Custom_Gauge control is given in the table below.
In the Scene Editor only one Custom_Gauge will be displayed since both controls are located at the same position and therefore are completely overlapping. One Custom_Gauge is hiding the other.
In the Scene Tree panel the Group_Content node contains a RenderNode2D and the newly created Custom_Gauges.
Path in Solution Explorer
Control
Solution > Controls
Custom_Gauge
Rename the Custom_Gauge nodes according to the table below either via the context menu "Rename" or the keyboard shortcut <F2>.
The Custom_Gauge node has been renamed accordingly.
Old Name
New Name
Custom_Gauge
Custom_Gauge_Speed
Custom_Gauge_1
Custom_Gauge_RPM
Select the Custom_Gauge controls one after the other. In the Properties panel configure the properties as given in the tables below.
In the Scene Editor the gauge controls for RPM and Speed are both visible.

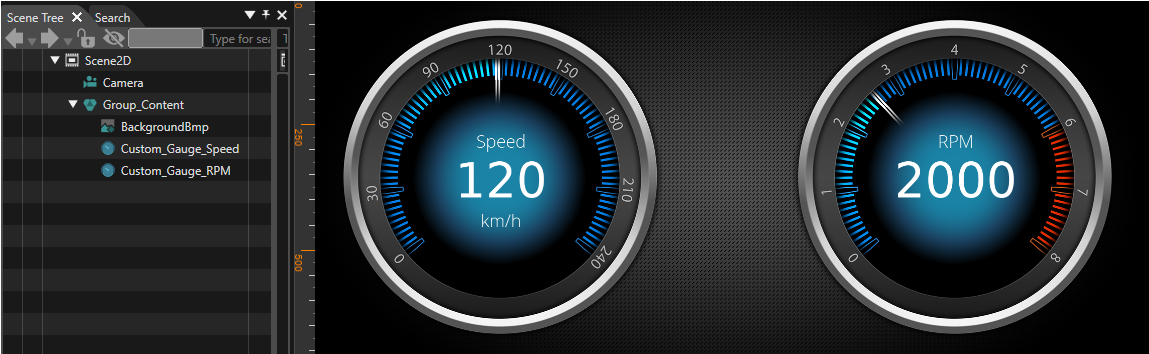

The Scene2D starts to look like a cluster, see image below.
Custom_Gauge_RPM Property
Value
Transformation
Position X
965.00
Position Y
30.00
Custom_Gauge_Speed Property
Value
Transformation
Position X
60.00
Position Y
30.00
Control
Value
120
Input Max
240
Top_Text
Speed
Value_Format Text
%d
Bottom_Text
km/h
BackgroundImage
Solution/Resources/Bitmaps/Points_BlueBmp
ForegroundImage
Solution/Resources/Bitmaps/Numbers_0-240Bmp
Check the Sceneit in the Player
by Saveselecting your work"Generate and startPlay" theand Player to testpressing the
functionalityplay of your configuration. To do this, please perform similar steps to the ones describedbutton in the
GettingStartedControlstop Best Practice.
The Speed Gauge can be tested by manipulating Custom_Gauge_Speed's Value Property (The property is changed to 50 in the image below).
The RPM Gauge can be tested by manipulating Custom_Gauge_RPM's Value Property.
panel
• When the Player appears, you can manually change the accessible values for selected controls:
• The changes should be immediately reflected on the display:
